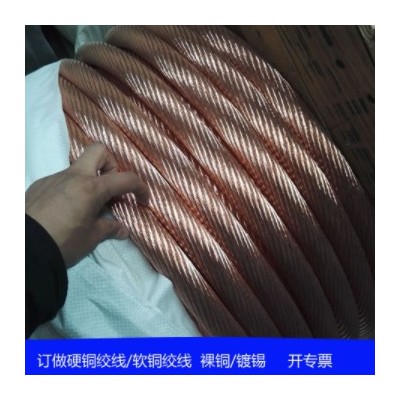

标称截面mm2 | 计算截面mm2 | 结构 | 绞线直径mm | 20°C直流电阻Ω/km ≤ | 重量kg/km | ||
总根数 | 股数*根数/线径mm | TJR-1 | TJRX-1 | ||||
0.1 | 0.102 | 9 | 9/0.12 | 0.44 | 176 | 179 | 0.94 |
0.16 | 0.159 | 9 | 9/0.15 | 0.56 | 113 | 115 | 1.47 |
0.25 | 0.247 | 14 | 14/0.15 | 0.68 | 72.9 | 74.1 | 2.29 |
0.40 | 0.408 | 13 | 13/0.20 | 0.86 | 44.2 | 44.9 | 3.79 |
0.50 | 0.503 | 16 | 16/0.20 | 0.96 | 36 | 36.6 | 4.70 |
0.63 | 0.628 | 20 | 20/0.20/ | 1.05 | 28.8 | 29.3 | 5.86 |
1.0 | 1.01 | 32 | 32/0.20 | 1.30 | 17.9 | 18.2 | 9.43 |
1.6 | 1.57 | 32 | 32/0.20 | 1.63 | 11.5 | 11.7 | 14.70 |
2.5 | 2.41 | 49 | 7*7/0.25 | 2.25 | 7.58 | 7.92 | 22.7 |
4 | 3.94 | 49 | 7*7/0.32 | 2.88 | 4.64 | 37.1 | |
6.3 | 6.16 | 49 | 7*7/0.40 | 3.60 | 2.97 | 58 | |
10 | 10.01 | 49 | 7*7/0.51 | 4.59 | 1.83 | 94.3 | |
16 | 15.83 | 84 | 7*12/0.49 | 6.17 | 1.16 | 150 | |
25 | 25.06 | 133 | 19*7/0.49 | 7.35 | 0.736 | 239 | |
40 | 40.13 | 133 | 19*7/0.62 | 9.30 | 0.459 | 382 | |
63 | 62.68 | 189 | 27*7/0.65 | 12.0 | 0.294 | 597 | |
80 | 78.15 | 259 | 37*7/062 | 13.0 | 0.236 | 744 | |
100 | 99.62 | 259 | 37*7/0.70 | 14.7 | 0.185 | 948 | |
125 | 124.63 | 324 | 27*12/0.70 | 17.9 | 0.148 | 1186 | |
160 | 162.78 | 324 | 27*12/0.80 | 20.2 | 0.113 | 1549 | |
200 | 196.05 | 444 | 37*12/0.75 | 21.8 | 0.0940 | 1860 | |
250 | 251.82 | 444 | 37*12/0.85 | 24.7 | 0.0732 | 2397 | |
315 | 310.42 | 703 | 37*19/0.75 | 26.3 | 0.0594 | 2954 | |
400 | 398.72 | 703 | 37*19/0.85 | 29.8 | 0.0462 | 3795 | |
500 | 498.05 | 703 | 37*19/0.95 | 33.3 | 0.0370 | 4740 | |
630 | 674.32 | 1159 | 61*19/0.83 | 37.4 | 0.0294 | 5965 | |
800 | 803.91 | 1159 | 61*19/0.94 | 42.3 | 0.0229 | 7651 | |
1000 | 1003.07 | 1159 | 61*19/1.05 | 47.3 | 0.0184 | ||
 |
